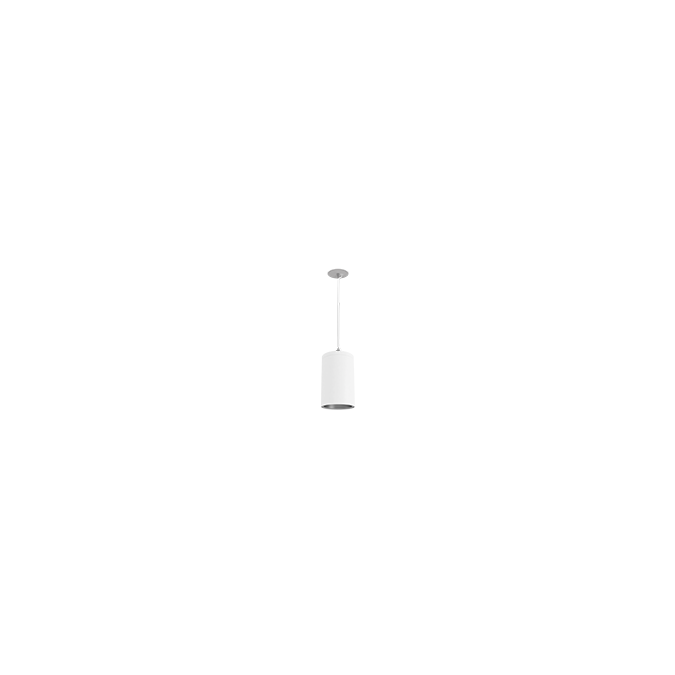

6" PXCYL DIRECT INDIRECT INDOOR CYLINDER
| USP 1 | SelectDrive Technology – 3 defined light levels |
|---|---|
| USP 2 | Innovative dual directional optical design |
| USP 3 | A complementary solution in PXCYL cylinder series |
| USP 4 | Central monopoint suspension for shadowless uplight |
| USP 5 | A shallow design and refined finish |
| USP 6 | Proudly assembled in the US and customizable |
| Product Data Sheet | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/GC-CS-PXCYL-CYLINDER-Up-and-Down-V052725-1.pdf |
| Dimmer Compatibility | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PXCYL-Dimmer-Compatibility.pdf |
| IES Files | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/6IN-PXCYL-Direct-Indirect-IES.zip |
| Installation Guide | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/GC-PXCYL-Updown-IS.pdf |
| sales_sheet | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PXCYL-Up-and-Down-Cylinder-Leaflet-V070125.pdf |
| LM_79_1 | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/6IN-PXCYL-LM79.zip |
| Logo High CRI | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/BAA-and-ARRA_80px.png |
| Logo Refine | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/2019/01/10443-HIGH-CRI-LOGO.png |
| wpspro_recent_view_time | 2023-05-31 05:42:24 |
| dpsp_networks_shares_total | 0 |
| dpsp_networks_shares_last_updated | 1629764359 |
| Logo Energystar | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PXCYL-80px.png |
| dpsp_share_options | a:7:{s:12:"custom_image";a:2:{s:2:"id";s:0:"";s:3:"src";s:0:"";}s:12:"custom_title";s:0:"";s:18:"custom_description";s:0:"";s:22:"custom_image_pinterest";a:2:{s:2:"id";s:0:"";s:3:"src";s:0:"";}s:22:"custom_title_pinterest";s:0:"";s:28:"custom_description_ |
| dpsp_post_single_previous_urls | a:0:{} |
| wplp_post_views_count | 2588 |
| sp_wpsp_product_view_count | 3903 |
Sales Sheet
JTNDYSUyMGNsYXNzJTNEJTIyYnV0dG9uLW5ldy1kaXN0cmlidXRvciUyMiUyMGhyZWYlM0QlMjIlMkZuZXdseS1yZWxlYXNlZC1wcm9kdWN0cyUyRiUyMiUyMHRpdGxlJTNEJTIyVmlldyUyME91ciUyMExhdGVzdCUyMFByb2R1Y3RzJTIyJTNFTmV3JTIwUHJvZHVjdHMlM0MlMkZhJTNFJTBBJTBBJTNDYSUyMGNsYXNzJTNEJTIyYXJyb3ctc2Nyb2xsLXRvJTIwYXJyb3ctc2Nyb2xsLXRvLS1jdGElMjIlMjBocmVmJTNEJTIyJTIzb25lJTIyJTNFJTNDaW1nJTIwc3JjJTNEJTIyJTJGd3AtY29udGVudCUyRnVwbG9hZHMlMkYyMDE4JTJGMDYlMkZhcnJvdy1kb3duLnBuZyUyMiUyMGFsdCUzRCUyMnNjcm9sbCUyMGRvd24lMjIlMjAlMkYlM0UlM0NzcGFuJTNFU2Nyb2xsJTIwZm9yJTIwbW9yZSUzQyUyRnNwYW4lM0UlM0MlMkZhJTNFJTBBJTBBJTNDYSUyMGNsYXNzJTNEJTIyYnV0dG9uLWZpbmQtZGlzdHJpYnV0b3IlMjIlMjBocmVmJTNEJTIyJTJGYWJvdXQlMkZmaW5kLWEtcmVwLWFnZW50JTJGJTIyJTIwdGl0bGUlM0QlMjJGaW5kJTIwYSUyMFJlcCUyMEFnZW50JTIyJTNFRmluZCUyMGElMjBSZXAlMjBBZ2VudCUzQyUyRmElM0UlMEE=
JTNDaWZyYW1lJTIwd2lkdGglM0QlMjI1NjAlMjIlMjBoZWlnaHQlM0QlMjIzMTUlMjIlMjBzcmMlM0QlMjJodHRwcyUzQSUyRiUyRnlvdXR1YmUuY29tJTJGZW1iZWQlMkZFakZIbTJ5aVh5YyUyMiUyMGZyYW1lYm9yZGVyJTNEJTIyMCUyMiUyMGFsbG93JTNEJTIyYWNjZWxlcm9tZXRlciUzQiUyMGF1dG9wbGF5JTNCJTIwZW5jcnlwdGVkLW1lZGlhJTNCJTIwZ3lyb3Njb3BlJTNCJTIwcGljdHVyZS1pbi1waWN0dXJlJTIyJTIwYWxsb3dmdWxsc2NyZWVuJTNFJTNDJTJGaWZyYW1lJTNFJTBB
Discover the pinnacle of suspended cylinder lighting with a uniquely singular point fixture that delivers pristine direct and indirect illumination.
The design enhances spatial perception and eliminates any trace of a cave-like feel.
Innovative Dual Directional Optical Design
The unique circular upward optic design allows for both indirect and direct light sources to be packed within a compact cylinder profile. With only 1.5” depth added, the product elevates your atmosphere with a brighter and more spacious ceiling while still keeping a pleasant unobstructive floating cylinder in the space.
UPLIGHT
Light Output 30% (500lm - 1,600lm)
Beam Angle 60° / 75°
DOWNLIGHT
Light Output 70% (1,300lm - 4,000lm)
Beam Angle 15° / 25°/ 40°/ 60°/ 75°
2 Lumen Packages
SelectDrive Driver with Two Dimming Options
Medium Light Engines
Direct Downlight: Low 1,275lm / Medium 1,750lm / High 2,150lm
Indirect Uplight: Low 475lm / Medium 695lm / High 850lm
Large Light Engines
Direct Downlight: Low 2,800lm / Medium 3,400lm / High 3,950lm
Indirect Uplight: Low 1,200lm / Medium 1,450lm / High 1,650lm
Various Colors
Cylinder Finishes
Reflector Colors
Please contact factory for customized finish and reflector options
Matt White
Matt Black
Matt White
Clear
Customized
Pendant/Suspension Mountings
Two Sizes Options
Direct Downlight
5 Beam Angles
Indirect Uplight
2 Beam Angles
Central Monopoint Suspension for Clean Shadowless Light
Available for either stem pendant or cable suspension with central monopoint mounting, the PXCYL direct / indirect cylinder brings a clean shadowless upward lighting effect on the ceiling, providing a sense of depth and security while limiting the cave effect.
A Complementary Solution in PXCYL Cylinder Series Family
Featuring the same design and finish options as the PXCYL downlight cylinders, the direct/indirect model also includes SelectDrive technology, allowing for three adjustable lumen output levels. With a high CRI of 90 and precise LED binning, it provides excellent color accuracy and uniform illumination in both upward and downward directions.
Surface
Downlight
2"/ 4"/ 6"/ 8"
Wall
Uplight
2"/ 4"/ 6"/ 8"
Wall
Downlight
2"/ 4"/ 6"/ 8"
Track
Downlight
2"

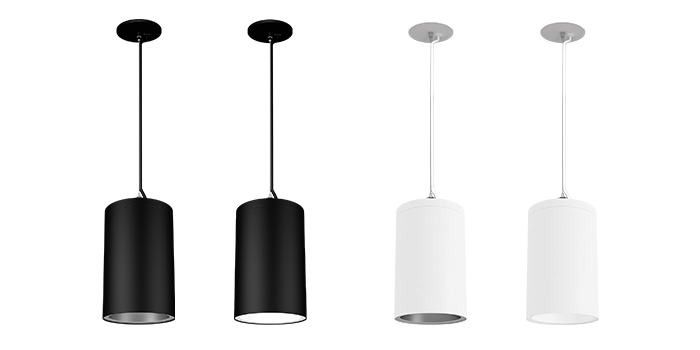

Suspension
Downlight
2"/ 4"/ 6"/ 8"
Suspension
Up & Down Light
4"/ 6"

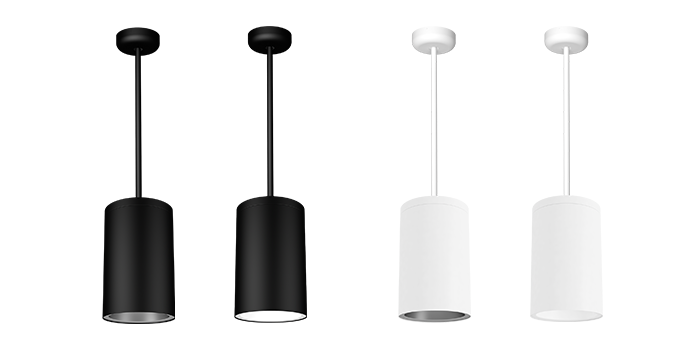

Pendant
Downlight
2"/ 4"/ 6"/ 8"
Pendant
Up & Down Light
4"/ 6"
