| USP 1 | HYBrid installation - DIRect or BYPass |
| USP 2 | Built-in universal voltage driver - BYPass installation |
| USP 3 | Replaces 7W-13W compact fluorescent lamps |
| USP 4 | Exceptional efficacy up to 113 LPW |
| USP 5 | 2700K / 3000K / 3500K / 4000K CCT |
| USP 6 | L70 rated lifetime of 50,000 hours |
| USP 9 | Compatible with magnetic ballasts - DIRect installation |
| USP 10 | Choices of 2G7, 2GX7, G23, and GX23 installations |
| Product Data Sheet | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PLS-Bypass-and-Hybrid-PLS-Lamps-Datasheet.pdf |
| Leaflet | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PL-Leaflet.pdf |
| IES Files | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PL-S-BYP-HYB-IES-1.zip |
| Installation Guide | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PLS-BYP-HYB-Instruction-Sheet.pdf |
| Ballast Compatibility | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PLS-PLSH-HYB-Ballast-Compatibility.pdf |
| LM_79_1 | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/PL-S-BYP-HYB-LM79.zip |
| Logo Refine | https://illumus-gc-staging.htiixgsahw-e9249ldnw4kr.p.temp-site.link/wp-content/uploads/2019/01/PLEDGE.png |
| wpspro_recent_view_time | 2023-06-20 03:11:50 |
| dpsp_networks_shares | a:1:{s:9:"pinterest";i:0;} |
| dpsp_networks_shares_total | 0 |
| dpsp_networks_shares_last_updated | 1683905784 |
| dpsp_share_options | a:7:{s:12:"custom_image";a:2:{s:2:"id";s:0:"";s:3:"src";s:0:"";}s:12:"custom_title";s:0:"";s:18:"custom_description";s:0:"";s:22:"custom_image_pinterest";a:2:{s:2:"id";s:0:"";s:3:"src";s:0:"";}s:22:"custom_title_pinterest";s:0:"";s:28:"custom_description_ |
| dpsp_post_single_previous_urls | a:0:{} |
| sp_wpsp_product_view_count | 497460 |
PLS BYPass & HYBrid Family - Products Lineup

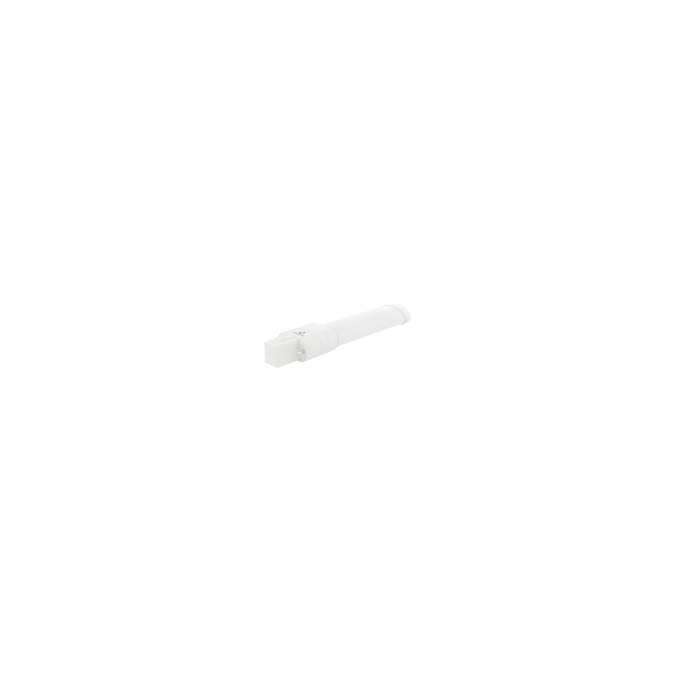

3.5W HYBrid Bypass installations
Replaces 7W-9W CFL lamp with G23 base
2700K / 3000K / 3500K / 4000K
325lm / 340lm / 350lm / 370lm
Design for horizontal installation

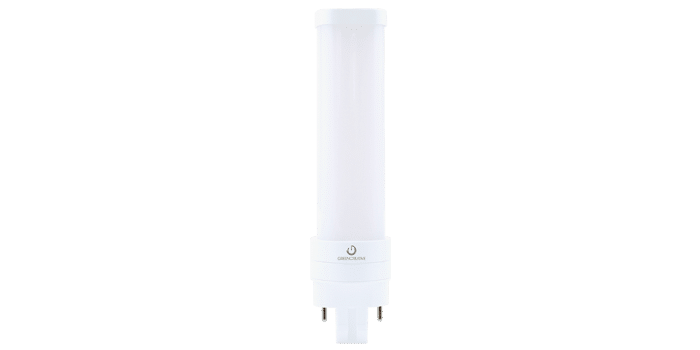

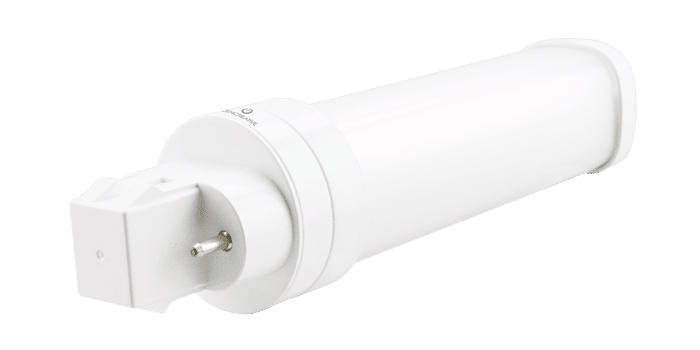

5.5W HYBrid Bypass installations
Replaces 13W CFL lamp with GX23 base
2700K / 3000K / 3500K / 4000K
520lm / 550lm / 600lm / 620lm
Design for horizontal installation
5.5W HYBrid Bypass installations
Replaces 13W CFL lamp with GX23 base
2700K / 3000K / 3500K / 4000K
570lm / 580lm / 600lm / 620lm
Design for horizontal installation

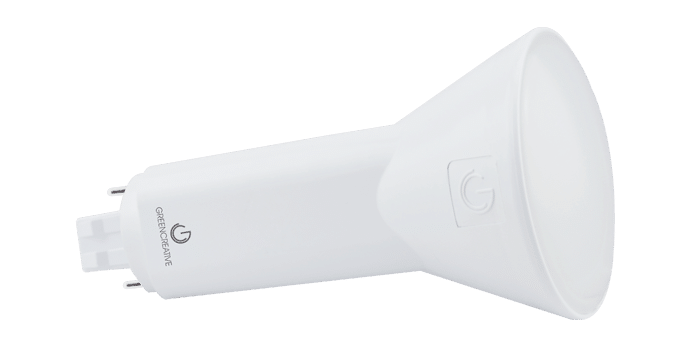

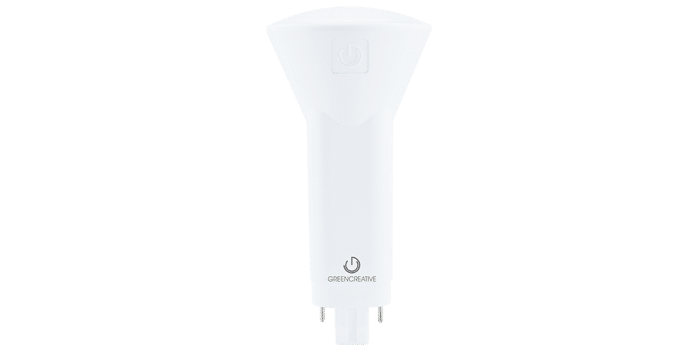

5.5W HYBrid Bypass installations
Replaces 13W CFL lamp with GX23 base
2700K / 3000K / 3500K / 4000K
570lm / 600lm / 600lm / 620lm
Design for vertical installation

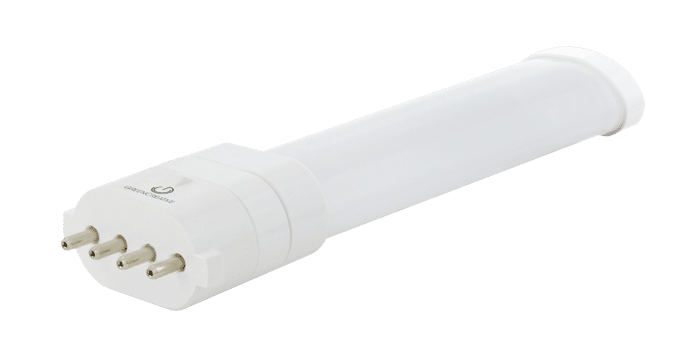

3.5W BYPass installations
Replaces 7W-9W CFL lamp with 2G7 base
3500K 350lm
Design for horizontal installation
5.5W BYPass installations
Replaces 13W CFL lamp with 2GX7 base
3500K 600lm
Design for horizontal installation
